Our company specializes in the production of high-precision slitting and shearing blades, designed for the precise slitting and cutting of various metal sheets (stainless steel, carbon steel, copper, aluminum, etc.). Using top-grade tool steel and mold steel, combined with advanced heat treatment and precision grinding processes, we ensure that our blades possess exceptional sharpness, wear resistance, and dimensional stability, meeting the stringent requirements for cutting edge quality and slitting accuracy in high-end precision slitting production lines.
We utilize high-grade tool steel and cemented carbide to ensure optimal performance matching under various working conditions:
Material/Grade | Main Features: | Recommended Applications: |
|---|---|---|
Cr12MoV / SKD-11 | High hardness, high wear resistance, good toughness | General carbon steel and stainless steel thin and medium plate slitting |
D2 | Extremely high wear resistance and dimensional stability | Continuous high-speed slitting of stainless steel and alloy steel |
H13K | Good high-temperature strength and thermal fatigue resistance | Slitting of silicon steel and high-hardness special steel |
LD | Combination of strength and toughness, impact resistance | Initial cutting and slitting of thick plates and high-strength plates |
W18Cr4V (High-speed steel) | Good red hardness, suitable for high-speed continuous operation | Precision slitting of non-ferrous metals and thin strips |
YG series cemented carbide | Ultra-high hardness, ultimate wear resistance | Slitting of ultra-thin strip materials (such as foils) and abrasive materials |
• Forged Base Material: Utilizing multi-directional forging technology to improve material density and isotropy.
• Heat Treatment System: Vacuum quenching + multiple tempering + deep cryogenic treatment to eliminate internal stress, stabilize the microstructure, and enhance overall performance.
• Precision Machining:
• Ultra-precision grinding: Ensuring straightness and sharpness of the cutting edge.
• Mirror polishing: Surface roughness of the cutting edge can reach below Ra0.1μm, reducing cutting friction and adhesion.
• Dimensional Control: Parallelism ≤0.002mm, thickness tolerance within ±0.001mm.

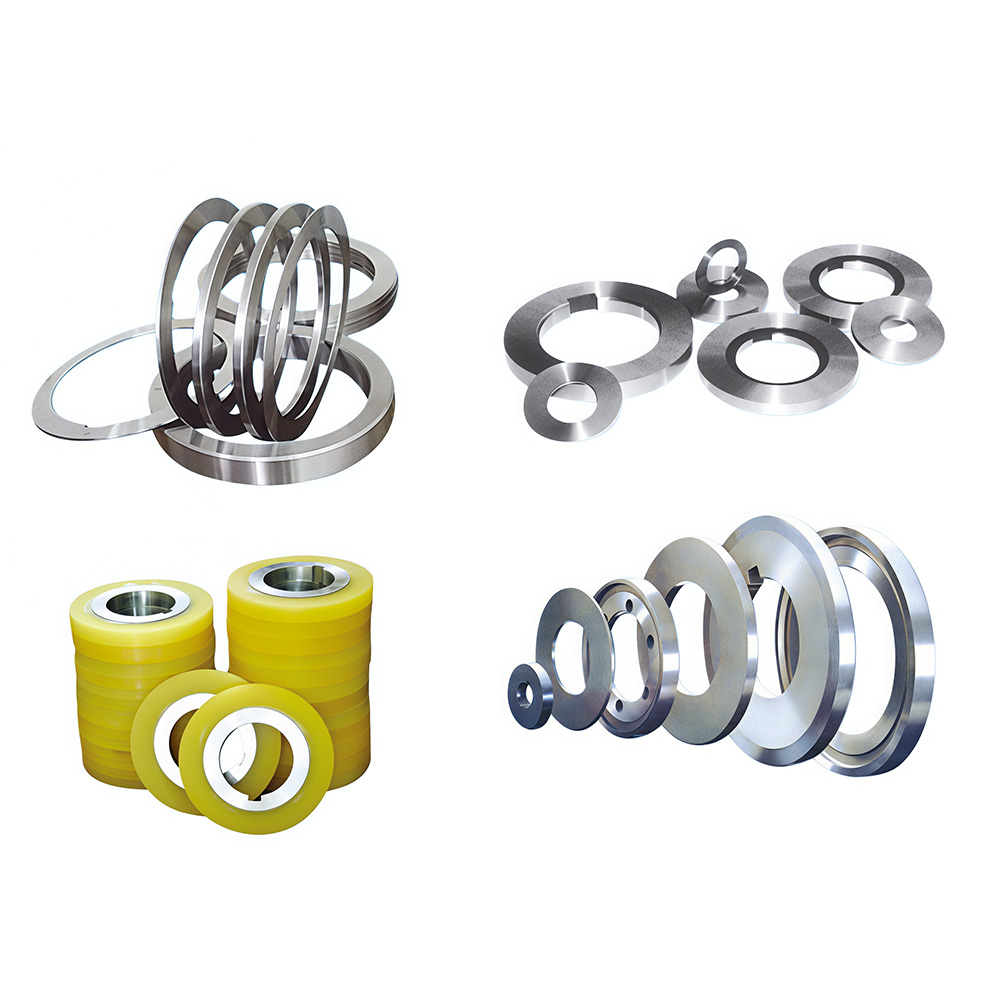

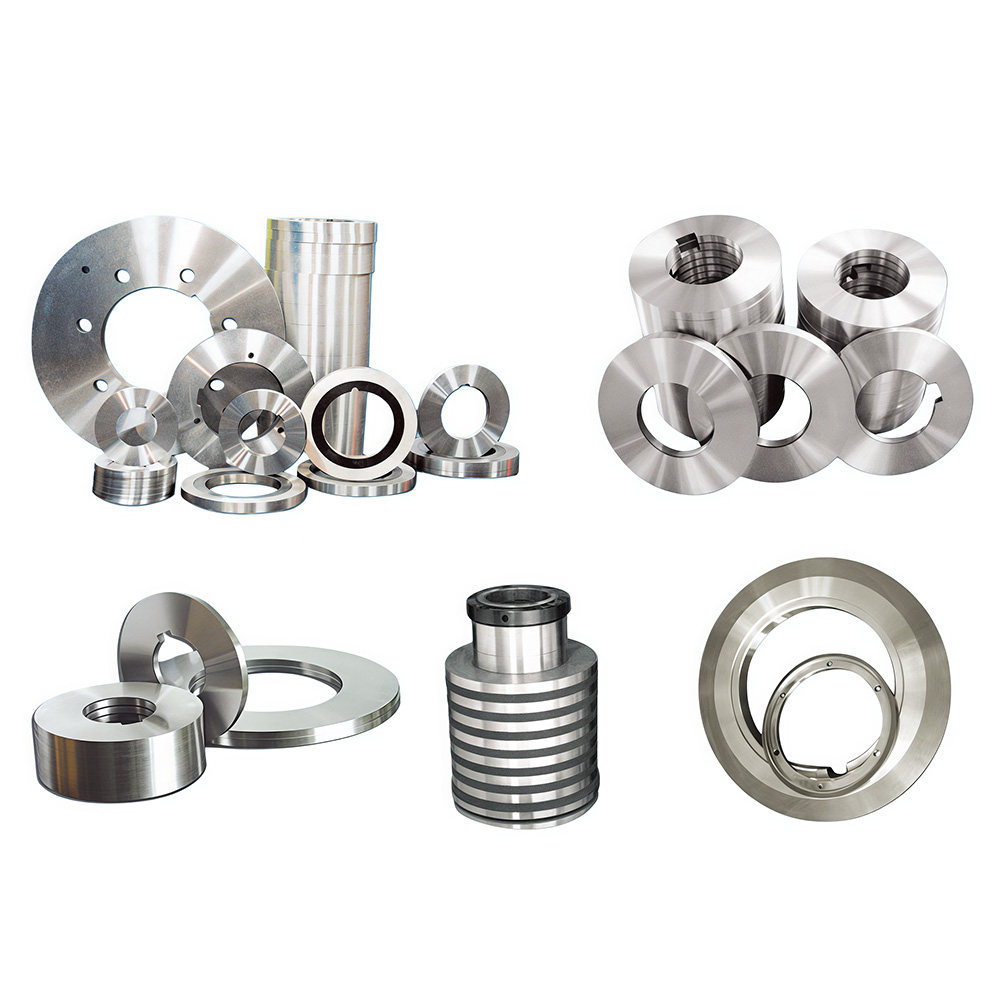

Product Types: | Structural Features: | Core Advantages: | Applicable Equipment and Materials |
|---|---|---|---|
Single-piece slitting knives | Integral cutter head, allowing for individual sharpening and replacement. | High flexibility, low maintenance costs, and strong adaptability | General-purpose slitting machines, small-batch production lines with frequent tool changes |
Complete set of rotary slitting knives | Blades and spacers are pre-assembled as a set, with built-in guiding structure. | Easy installation, pre-set optimal gap to ensure constant slitting width | High-volume, high-precision, fixed-specification continuous slitting production lines |
Ultra-thin precision cutting blades | Ultra-thin blade design with high-precision cutting edge. | Narrow cutting seam, minimal material loss, and smooth, burr-free cuts | Precision foil materials (copper foil, aluminum foil), ultra-thin stainless steel strip slitting |
Heavy-duty slitting knives | Thickened blade body for enhanced edge support. | Strong resistance to lateral forces, suitable for slitting thick plates and high-strength materials | Initial and fine slitting of thick steel plates and high-tensile strength strip materials |
1. Excellent Cutting Quality: Mirror-grade cutting edges provide smooth and flat cut edges, free from burrs and indentations, reducing subsequent processing steps.
2. Extremely High Slitting Accuracy: Excellent dimensional stability and consistency of the complete set of tools ensure long-term stable slitting width tolerance.
3. Long Service Life: High-quality materials and deep heat treatment processes significantly improve blade wear resistance, reducing blade replacement frequency and downtime.
4. Stable and Reliable Operation: Precision dynamic balancing ensures smooth high-speed operation, reducing equipment vibration and noise.
5. Flexible Adaptation and Customization: Replacement blades are available for mainstream domestic and international slitting machine brands (such as STAMCO, BRONX, SUNNY, etc.), and non-standard customization is also supported.
• Precision Stainless Steel Processing: Decorative panels, tableware, electronic component substrate slitting
• Non-ferrous Metal Processing: Copper strips, aluminum strips, new energy battery foil slitting
• Silicon Steel and Special Steels: Motor and transformer silicon steel sheet slitting
• Packaging Materials: Tinplate, aluminum-plastic composite strip slitting
• Automotive and Home Appliances: High-strength steel plates, galvanized sheet precision cutting
• Selection Consulting: Recommending the best blade solution based on your material, thickness, speed, and accuracy requirements
• Gap Setting Guidance: Providing optimal blade gap parameters corresponding to different material thicknesses
• Sharpening Service: Providing professional blade sharpening to restore original accuracy and significantly reduce tool lifecycle costs
• Fast Response: Standard materials and specifications are always in stock, and customized delivery times are efficient and controllable
Q: How to choose between single blades and complete blade sets?
A: Single blades are suitable for flexible production lines with varying product specifications and frequent blade changes. Complete blade sets are suitable for mass production lines with fixed widths, where ultimate efficiency and stability are desired. They avoid adjustment errors during each installation through pre-set precision.
Q: What is the recommended sharpening cycle and number of times for the blades?
A: This depends on the type, thickness, and production volume of the slitting material. Sharpening is usually required after a certain tonnage of material has been processed or when the cutting edge quality deteriorates. High-quality blades can be sharpened 10-15 times or more.
Q: Can you solve the burr problem during slitting?
A: Yes. Burrs are usually related to blade sharpness, gap setting, and equipment condition. We will first inspect your equipment and provide targeted blade edge optimization solutions and process parameter adjustment suggestions.
Please provide the following information, and we will provide you with accurate selection and quotation:
1. Slitting machine brand, model, and cutter dimensions (outer diameter/inner diameter/thickness)
2. Main slitting material type, thickness range, and tensile strength
3. Target slitting width, tolerance requirements, and description of existing edge quality
4. Equipment operating speed and estimated monthly processing volume
