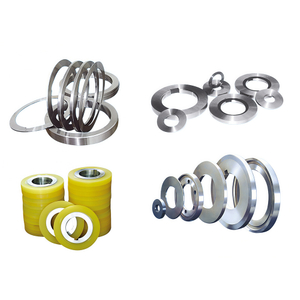

A set of upper and lower carbide blades specifically designed for high-precision slitting processes of lithium battery electrodes, capacitor electrodes, and other similar materials. With their ultra-high hardness, exceptional wear resistance, and superior thermal stability, these blades meet the stringent requirements of new energy materials for burr-free, delamination-free, and highly consistent cutting, making them a key industrial tool for improving battery energy density and safety.
Blade assembly components: | Core Functions: | Technical Features: |
|---|---|---|
Upper blade (moving blade) | Active cutting to create the initial incision | Ultra-smooth cutting edge (Ra ≤ 0.1μm), precisely optimized cutting angle |
Lower blade (fixed blade/bottom blade) | Supporting material for precise shearing | High-rigidity base material, ensuring vibration-free and deformation-free cutting process |
Blade assembly matching system | Precise alignment and gap control of the upper and lower blades | Micron-level gap adjustment, guaranteeing cutting edge quality and tool life |
• Surface Finish: Cutting edge roughness Ra ≤ 0.1μm
• Cutting Accuracy: Slitting width tolerance ±0.01mm
• Applicable Materials: Positive and negative electrode sheets (coated aluminum foil/copper foil), separators, capacitor electrode foils
• Cutting Effect: Effectively eliminates defects such as coating peeling, burrs, and wavy edges
• Service Life: 8-10 times longer than ordinary high-speed steel tools
1. Zero-defect cutting: Mirror-finish cutting edges and precise gaps eliminate burrs and micro-cracks on the electrode sheets from the source.
2. Ultra-high wear resistance: The hard alloy substrate easily handles highly abrasive materials such as ceramic coatings.
3. Excellent stability: Superior thermal stability ensures consistent cutting performance during long-term continuous production.
4. Low maintenance costs: The ultra-long service life and resharpenable design significantly reduce the cost per cut.
We provide customized cutting tool solutions for the critical slitting process in lithium-ion battery manufacturing, ensuring high quality throughout the entire process from raw materials to battery cells.
Please provide the following information, and our engineers will provide you with tailored recommendations:
1. Type of material to be cut (e.g., lithium iron phosphate cathode sheet, graphite anode sheet, separator, etc.)
2. Material thickness, coating composition, and required cutting width
3. Existing equipment model and any cutting quality issues encountered
4. Production capacity requirements and target yield rate
Submit parameters to obtain a solution | Contact a battery cutting expert | Send samples for testing and analysis
