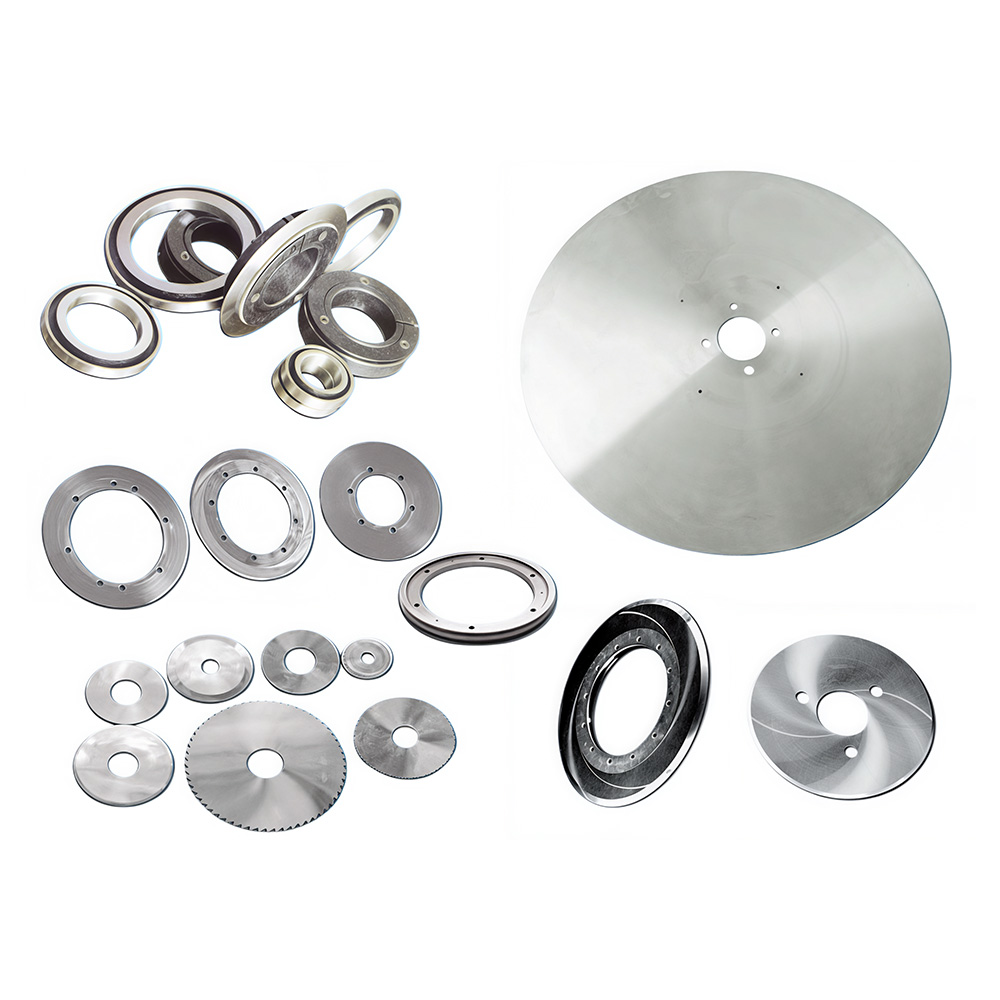

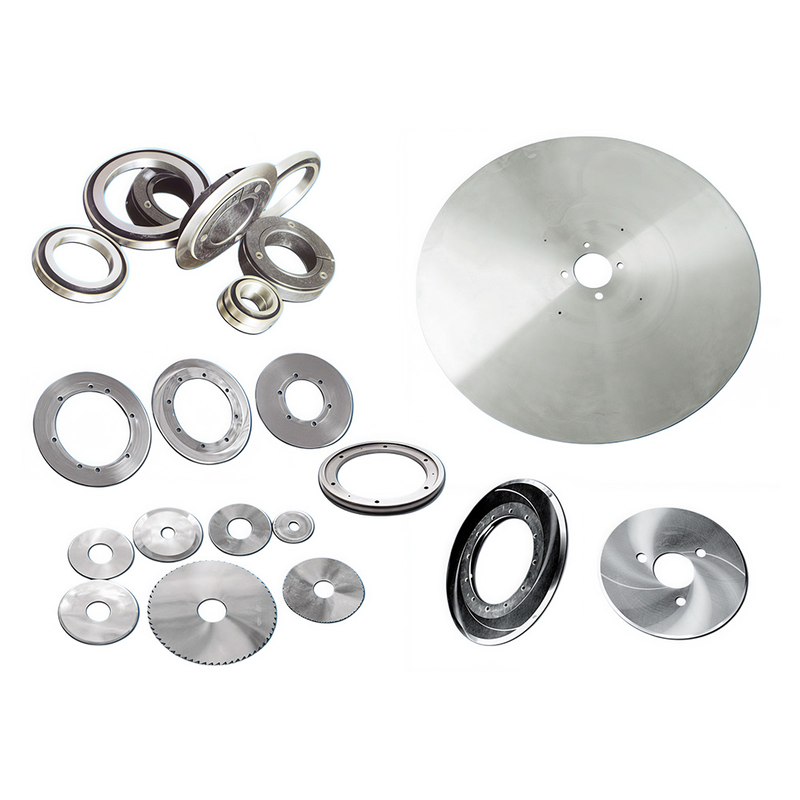

Designed specifically for high-precision slitting applications in lithium batteries, electronic materials, rubber, paper, films, aluminum foil, and other materials. Utilizing special materials and nano-level processing technology, it achieves micron-level cutting precision, providing excellent wear resistance while ensuring minimal cutting resistance.
Material Types: | Key Features: | Typical Applications: |
|---|---|---|
High-toughness mold steel (LD/Cr12MoV) | High toughness and resistance to chipping | Rubber, elastomers, composite films |
Ultra-hard high-speed steel (W6/W18 series) | High red hardness and wear resistance | Lithium battery electrodes, copper and aluminum foils |
Powder metallurgy steel (ASP/CPM) | Uniform structure and sharpness | Optical films, electronic release films |
Cemented carbide (YG series) | Ultra-high hardness | Carbon fibers, ceramic coating materials |
Special coatings (Diamond/DLC) | Ultra-low friction | Adhesive materials, release paper |
Industries: | Key Challenges: | Solution: |
|---|---|---|
Lithium batteries | Electrode coating detachment and burr control | Carbide coated blades, burr ≤3μm |
Electronic materials | Pressure-free, static-free cutting | Anti-static coating + special cutting edge design |
Rubber products | Smooth cut edges, no fraying | Sharp blades with large rake angle, optimized cutting force |
Film processing | No scratches, high cleanliness | Mirror polishing, roughness Ra≤0.025μm |
Aluminum foil slitting | Anti-adhesion, no wrinkles | Teflon coating + tension matching scheme |
1. Excellent Precision: Thickness tolerance ±0.001mm, parallelism ≤0.002mm
2. Significantly Extended Lifespan: Wear resistance increased by 3-5 times, reducing the frequency of tool changes
3. Optimized Cutting: Cutting resistance reduced by more than 30%, resulting in energy savings and high efficiency
4. Flexible Customization: Supports comprehensive customization of materials, coatings, and blade types
5. Stable and Reliable: Dynamic balance grade G1.0, suitable for high-speed continuous production
• Precise Selection: Recommending the optimal solution based on material characteristics and process parameters
• Process Optimization: Providing comprehensive recommendations on cutting parameters, tension control, etc.
• Maintenance Support: Professional sharpening services to extend tool lifespan
• Fast Response: Stock available for standard models, controllable lead times for customized orders
Please provide the following information, and we will customize a dedicated slitting solution for you:
1. Type and thickness of the material to be slit
2. Equipment model and speed requirements
3. Current cutting problems encountered
4. Accuracy and yield targets
