We provide professional tooling solutions for the entire PCB board processing workflow. Covering all processes from blanking, edge milling, cutting to chamfering, we offer cost-effective customized solutions for various materials such as FR4, aluminum substrates, and high-frequency boards. This helps customers significantly reduce procurement costs and improve processing quality.

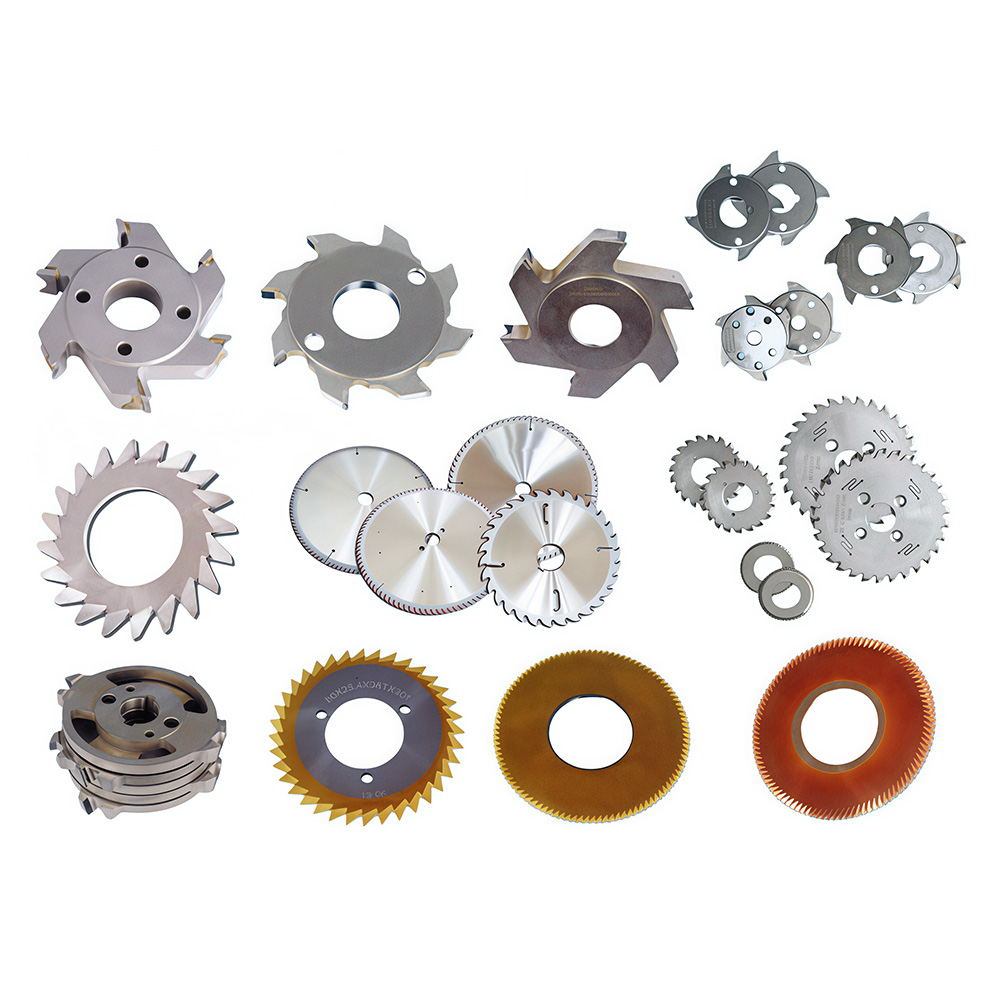

Product Types: | Main functions: | Technical Features: |
|---|---|---|
Diamond cutting blades | Preliminary PCB board cutting | High-hardness diamond coating, extending lifespan by 5-8 times |
Diamond edging blades | Precision edge grinding | Multiple grit sizes available, smooth edges without burrs |
Fully automatic/semi-automatic routing cutters | Outline cutting | High-rigidity design, suitable for high-speed continuous operation |
PCB slitting circular blades | Precision strip cutting | Micron-level precision, flat cutting surface without delamination |
PCB chamfering blades | Edge angle processing | Precise angles, one-time molding without rough edges |
• Diamond-coated series: Ultra-hard and wear-resistant, long lifespan
• Carbide substrate: High rigidity, impact resistance
• Special high-speed steel: Balanced sharpness and toughness
• Nanoscale diamond coating technology
• Precision dynamic balancing (G0.4 grade)
• Micrometer-level edge passivation treatment
• Fully automatic CNC grinding and shaping
• Machining accuracy: ±0.01mm (depending on the tool type)
• Applicable plate thickness: 0.2-5.0mm
• Maximum rotational speed: 40,000rpm (balancing grade G0.4)
• Service life: 3-5 times longer than ordinary blades
• Minimum runout: ≤0.005mm
• Size Customization: Diameter, cutting length, and number of teeth can be customized as needed.
• Coating Customization: Diamond, titanium nitride, and diamond-like carbon coatings are available.
• Material Customization: Specifically developed for special substrates (such as ceramic substrates and metal substrates).
• Packaging Customization: Rust-proof and shock-resistant packaging to ensure safe transportation.
Please provide the following information:
1. PCB board material type and thickness
2. Processing equipment brand and model
3. Current tool usage problems
4. Monthly processing volu
